Applicable for: cummins xpi injectors, cummins isg injector, isx injector, isl injector, isc injector, scania xpi injector ZQYM No.：200802 Dimension: 390*370*85 Weight: 6.5kg

ZQYM No.：200246 NO-200053 X15 QSX15 ISX15 Injector Fixed Clamp NO-200052 X15 QSX15 ISX15 Injector Nozzle Disassembly Tool NO-200054 Disassembly Tool for X15 QSX15 ISX15 Injector Shell NO-200566 X15 QSX15 ISX15 Injector Nozzle Tightness Test Tool weight: 1.4kg

ZQYM No. 200237 Weight: 1.8kg Including: NO-200436 HPI Solenoid Valve Module Assembly Too NO-200437 HPI Solenoid Valve Module Disassembly Tool NO-200433 HPI Actuator Tightness Test Tool-A NO-200434 HPI Actuator Tightness Test Tool-B NO-200432 HPI Actuator Air Clearance Measuring Tool NO-200431 HPI Actuator Lift Measuring Tool

ZQYM No：410159 NO-200182 Cummins solenoid valve disassembly tool-2 jaw NO-200183 Cummins midbody disassembly tool-14 jaw NO-200184 Cummins midbody disassembly tool-16 jaw NO-200180 Clamps C040(Xφ40） NO-200242 Cummins solenoid valve fixed spanner

ZQYM Product No.: 200240 Cummins M11 EUI nozzle cap disassembly, Armature disassembly, Armature sealing measurement, Solenoid valve stroke measurement, Air clearance measurement, Opening pressure test, Check valve measuring tool NO-200185 Cummins M11 Nozzle Cap Disassembly Tool NO-200223 Cummins M11 Nozzle Opening Pressure Testing Tools Y-01 NO-200270 Cummins Solenoid Valve Stroke Measuring Tool NO-200412 Air Clearance Measuring Tool CAT C13 C15 C18 NO-200430 Cummins M11 Armature Disassembly Tool NO-200615 M11 Armature Tightness Measuring Tool NO-200616 M11 Check Valve Measuring Tool NO-200721 Cummins EUI Solenoid Valve Stroke Measuring Tool（Dynamic Testing）

ZQYM Product No.: 200257 (Denso,Bosch110,Bosch120)Injector,armature lift,needle valve lift, air clearance lift, buffer stroke measurement ZHXK-01 Bosch 120 series injector armature lift measuring tool ZHXK-02 120 Air clearance measuring tool ZHXK-03 110 Air clearance measuring tool ZHXK-04 120 needle valve lift measuring tool ZHXK-05 110 armature lift measuring tool ZHXK-06 110 solenoid valve lift measurement tool ZHXK-07 Zero block ZHXK-09 110 armature fixing sleeve ZHXK-10 Cummins solenoid valve measurement Air clearance measurement ZHXK-11 Denso armature lift measurement NO-200738 CRIN2 (Bosch) buffer stroke measurement tool

ZQYM NO.200102 Include: ZHXK-03 110 Air clearance measuring tool ZHXK-05 110 armature lift measuring tool ZHXK-06 110 solenoid valve lift measurement tool ZHXK-07 Zero block ZHXK-09 110 armature fixing sleeve NO-200584 Bosch 110 dynamic lift measurement tool NO-200749 Bosch 111 armature lift measurement NO-200636 Bosch 110 solenoid disassembly tool

Bosch 120 series injector disassembly and measurement tool ZQYM Product No.：200103 ZHXK-01 Bosch 120 series injector armature lift measuring tool ZHXK-02 120 Air clearance measuring tool ZHXK-04 120 needle valve lift measuring tool ZHXK-07 Zero block NO-200725 Bosch 120 solenoid valve spring height measurement tool NO-200726 Bosch 120 nozzle spring height measuring tool NO-200687 Bosch 0445120453 nozzle tool/1.5 NO-200567 Bosch 120 dynamic lift measurement tool NO-200731 High precision solenoid valve separator removal tool NO-200738 CRIN2 (Bosch) buffer stroke measurement tool

ZQYM 20 Pcs Kit of common rail injector disassembly and assembly tools

ZQYM tool kit for Cummins QSK fuel injector test ZQYM Cummins QSK Test Tool ZQYM Product No：200729 NO-200318 Response time sensor NO-200592 Cummins QSK fuel collector NO-200405 QSK oil return kit NO-200406 QSK plug screw NO-200407 QSK Cap for inlet adaptor NO-200239 Inlet adaptor Accessories: Rubber ring 2 steel balls 2 Screws 2 6-07 Gas Pipe Fittings 2

ZQYM Diesel Denso filter disassembly tool Function: Removing and inserting the Denso filter element ZQYM Product No：200004 NO-200393 Handle-1 001 NO-200397 Handle-2 005-φ6 NO-200398 Handle-3 002-M3 NO-200392 Main body006-5 NO-200699 Denso filter element drilling tool NO-200395 004 M12+1.5 NO-200396 004 M14+1.5

ZQYM Diesel Bosch crin 4.2 4-pin injector disassembly tool ZQYM Product No：200109 NO-200754 Bosch four-pin common rail injector inlet and return oil kit NO-200755 Bosch 120 four-pin injector disassembly tool-1 NO-200756 Bosch 120 four-pin injector disassembly tool-2 NO-200757 Bosch 120 four-pin injector disassembly tool-3 NO-200758 Bosch 120 four-pin injector disassembly tool-4 NO-200759 Bosch 120 four-pin injector disassembly tool-5

ZQYM Diesel Bosch Piezo injector repair kit ZQYM Product No：200113 NO-200899 Bosch piezo injeceor nozzle tool NO-200910 Bosch piezo injeceor repair tool NO-200880 Bosch piezo injeceor Delphi valve assembly lift measurement NO-200787 Pressurization valve 10 bars

ZQYM Cummins PT injector disassembly tool ZQYM Product No：200101 NO-200185 Cummins EUI disassembly tool NO-200666 PT injector tool clamp -1 NO-200667 PT injector tool clamp -2 NO-200668 PT injector tool clamp -3 NO-200938 PT injector tool clamp -4 NO-200796 Allen wrench -2 NO-200810 Allen wrench -2

ZQYM Diesel CAT c7c9 injector disassembly tool ZQYM Product No：200730 NO-200120 CAT C7C9 oil nozzle disassembly tool NO-200121 C7C9 apron cone rod NO-A200120 C7C9 apron ejector-2 NO-200122 C7C9 apron ejector-1 NO-200186 C7C9 nozzle disassembly tool NO-A200225 Injection pressure test for C-9 (CAT-1) NO-A200227 Injection pressure test for C7/C9 (CAT-3) NO-200610 C7C9 Air Clearance Measurement Tool NO-200611 C7C9 Needle Valve Lift Measurement Tool NO-200612 C7C9 Control valve measuring tool NO-200614 Zero block

ZQYM Diesel Caterpillar 320D 336E fuel injector disassembly measuring tool ZQYM No. 200998 NO-200736 CAT336E Pressure Cap Solenoid Valve Tool NO-200334 CAT 320D oil return clamp CAT-336E Gripper CAT-336E armature lift NO-200739 CAT 320D armature lift measurement NO-200740 320D Air Clearance Measurement NO-200741 Zero block NO-200742 CAT 320D armature fixed wrench NO-200743 320D valve assembly tightening NO-410076 Socket Screwdriver Accessories: 1 screw for holder B guide rod,Quick plug 1, 1 rubber ring

ZQYM Caterpillar 320D fuel injector disassembly measuring tool ZQYM Product No：200999 Function: CAT 320D injector armature disassembly, valve assembly disassembly and armature lift, air clearance lift measurement Part No. 515 320D three-pointed wrench NO-200742 CAT320D armature fixed wrench NO-200743 320D spool screw disassembly tool NO-200740 320D Air Clearance Measurement NO-200739 CAT 320D armature lift measurement NO-200334 CAT 320D oil return clamp NO-200741 Zero block NO-410076 Socket Screwdriver

ZQYM Diesel Caterpillar C13 C15 C18 EUI disassembly measuring tools ZQYM Product No：410129 NO-200254 C13C15C18 nozzle opening pressure testing tool Y-09 NO-200253 Delphi Hyunda series Opening pressure test tool Y-08 NO-200255 CAT 3500 Opening pressure test tool Y-10 NO-200769 CATC13 Opening pressure test tool Y-13 NO-200401 C13C15C18 Solenoid Valve Lift Measuring Tool NO-200412 C13C15C18 Air Clearance Measuring Tool NO-200429 C13C15C18 Valve Assembly Tightness Test Tool NO-200264 Zero Block NO-200789 CAT C13 injector clamping tool NO-200545 Disassembly tool for CATC13/C15/C18 injector solenoid valve NO-200583 EUI nozzle cap removal tool

ZQYM Diesel Volvo EUI disassembly measuring tool ZQYM Product No：410118 NO-200090 EUI nozzle cap removal tool No. 27 NO-200727 Volvo spool stroke measurement NO-200728 Volvo solenoid valve stroke measurement NO-A200228 Y-06 Volve 2-pin injection pressure test NO-200319 Y-011 Volve 2-pin injection pressure test

ZQYM Diesel EUI Injector Nozzle Dismounting Tools ZQYM Product No：200245 Unscrew the screw of the EUI dismounting tool,Put the injector cap on the tool and tighten the screw, Can be disassembled with torque wrench NO-200090 No. 27 EUI Dismounting Tool NO-200091 No. 29 EUI Dismounting Tool NO-200093 No. 36 EUI Dismounting Tool NO-200186 C7C9 Nozzle Dismounting Tools

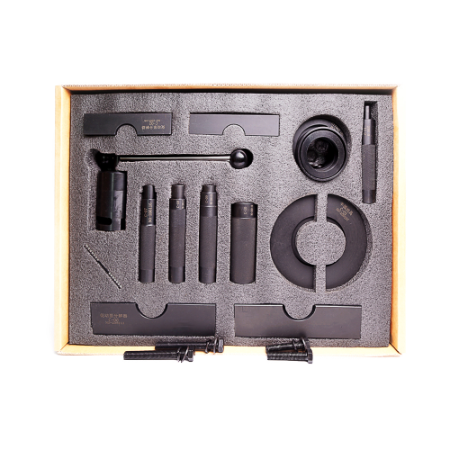

ZQYM Diesel CAT C7C9 actuating pump disassembly tool ZQYM Product No：200734 NO-200116 C-07 tool NO-200117 C-08 tool NO-200118 C-09 tool NO-200119 C-10 tool NO-200533 C-11 tool NO-200108 Actuator pump resolver C-02 NO-200111 Actuator Pump Resolver C-03 NO-200107 Semicircle fixture C-01 NO-200012 Fixed chassis C-04 NO-200534 Bottom bracket C-12 NO-200113 CAT Poppet Valve Tool C-05 accessories: 2 long screws, 2 short screws, 8 shims, 1 pin

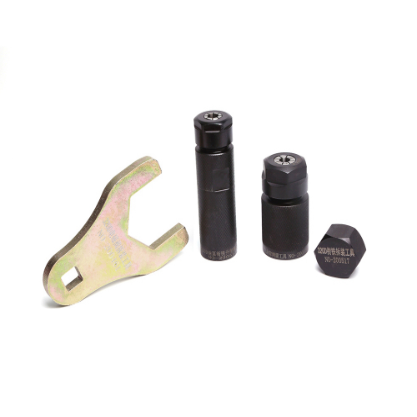

ZQYM Cat 320D fuel pump solenoid valve  disassembly measuring tool ZQYM No. 410021 weight: 1.3kg 200461 320D solenoid valve disassembly and assembly tool 200515 320D pump armature lift measuring tool 200516 320D pump air clearance measuring tool 200517 320D pump armature disassembly and assembly tool

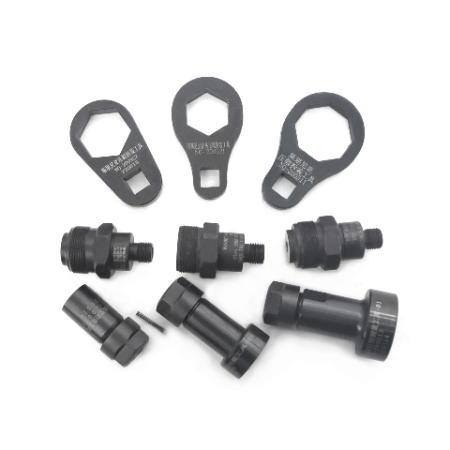

ZQYM Diesel Scania EUI disassembly measuring tool ZQYM Product No：200107 NO-200786 Y-12 Scania injection pressure test NO-200511 Scania nozzle cap removal tool NO-200512 Scania plug height measuring tool NO-200513 Scania stroke measuring tool NO-200535 Scania stroke measuring tool-02 NO-200621 Scania nozzle removal tool NO-200927 Nozzle cap disassembly tool for injector scania NO-200252 Y-07 Volvo start injection pressure test tool NO-200408 Y-12 Scania injection pressure test

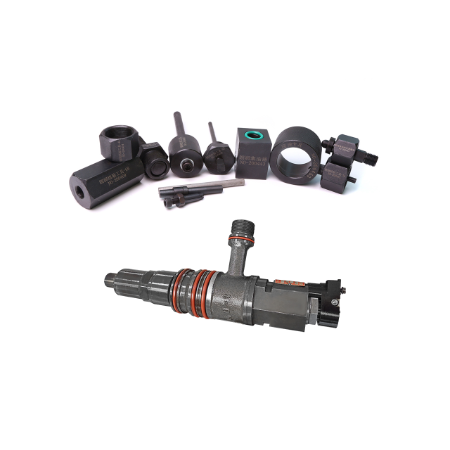

ZQYM Diesel L-orange MTU disassembly tool ZQYM No：410018 NO-200443 L-orange fuel collector NO-200451 L-orange dismantling tool-1A NO-200453 Oil return fixture NO-200454 NO-200457 L-orange disassembly tool-4A NO-200469 L-orange Assembly Tool-6B NO-200470 L-orange Assembly Tool-6C NO-200455 L-orange dismantling tool-4B NO-200458 L-orange dismantling tool-5A NO-200444 NO-200445 L-orange oil guide rod compression nut NO-200448 L-orange disassembly tool

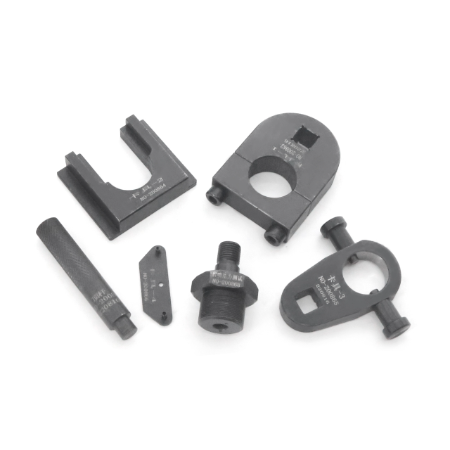

ZQYM Diesel HEUI series CAT 3412 injector disassembly measuring tool ZQYM Product No：20000116 NO-200863 Fixture-1 removable injector housing NO-200864 Fixture-2 fixed on the vise NO-200865 Fixture-3 removable nozzle cap NO-200866 Fixture-4 NO-200868 Opening Pressure Test Tool NO-200869 mandrel

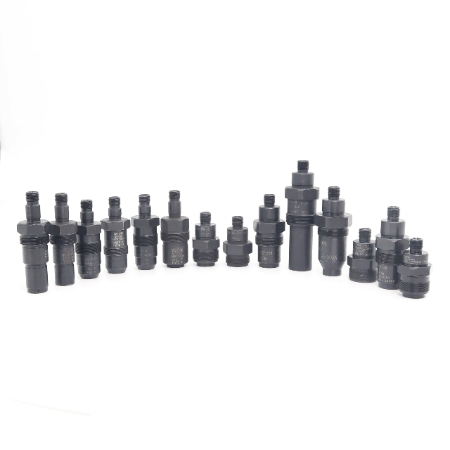

ZQYM Diesel Fuel Injector Opening pressure test tool ZQYM EUI Injector HEUI injector Opening pressure test tool ZQYM No. 410176 Weight: 5.015kg NO-200223 Y-01 Cummins M11 Opening pressure tool NO-A200224 Y-02 Cummins N14 Opening pressure tool NO-A200225 Y-03 CAT C-9 Opening pressure tool NO-A200226 Y-04 CAT 3126 Opening pressure tool NO-A200227 Y-05 CAT C7C9 Opening pressure tool NO-A200228 Y-06 VOLVO E1 2-Pin Opening pressure tool NO-200252 Y-07 Bosch Volvo Opening pressure tool NO-200253 Y-08 Delphi Hyundai Opening pressure tool NO-200254 Y-09 CAT C15C18 Opening pressure tool NO-200255 Y-10 CAT 3500 Opening pressure tool NO-200319 Y-11 VOLVO E3 4-Pin Opening pressure
tool NO-200408 Y-12 Bosch Scania Opening pressure tool NO-200769 Y-13 CAT C13 Opening pressure tool NO-200786 Scania Opening pressure tool NO-200868 CAT 3412 Opening pressure tool

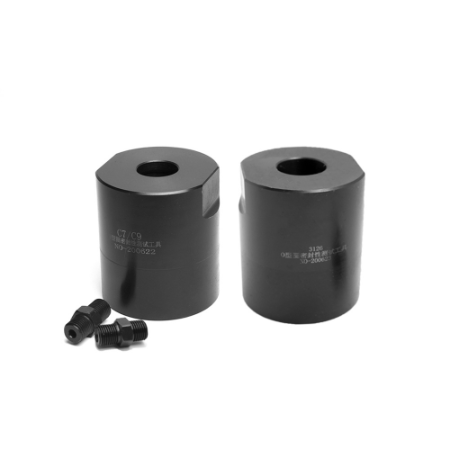

ZQYM Diesel CAT C7C9 O-ring tightness test tool ZQYM NO-200622

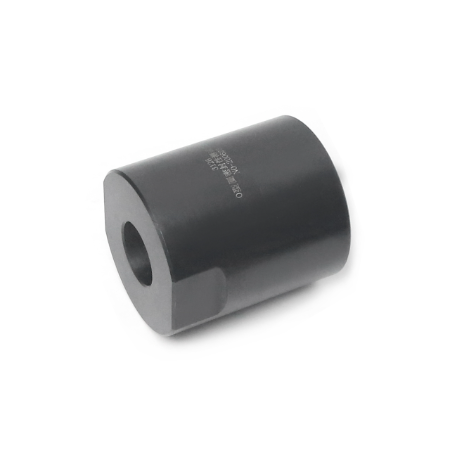

ZQYM Diesel CAT 3126 O-ring tightness test tool ZQYM Diesel NO-200623

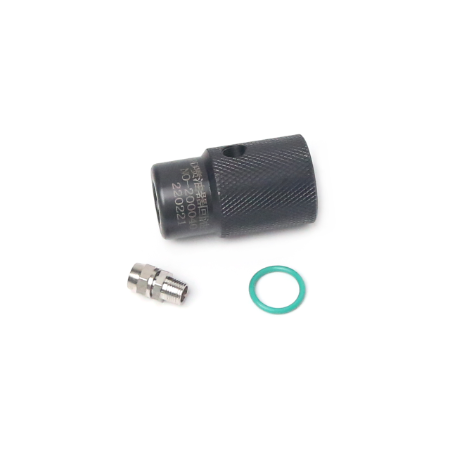

ZQYM Diesel CAT 320D injector oil return clamp NO-200040

ZQYM Diesel John Deere Denso 6480 Common Rail Injector Clamp ZQYM Diesel NO-200788

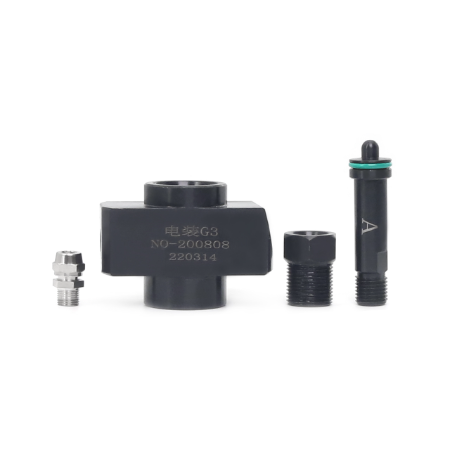

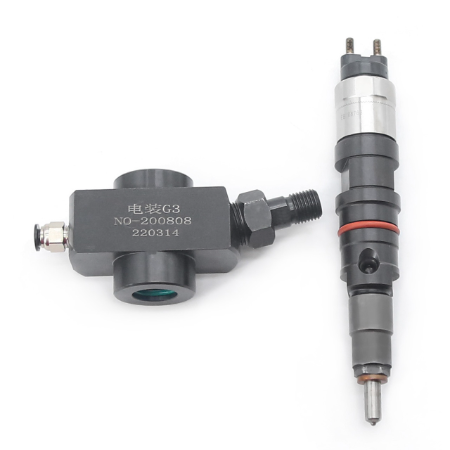

ZQYM Diesel Denso G3 Common Rail Injector Clamp ZQYM Diesel NO-200808

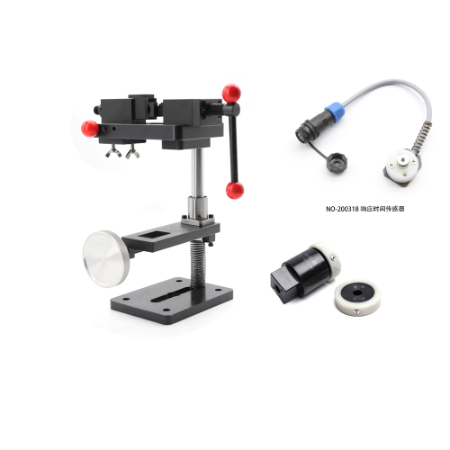

Model No.: 200485 Weight:10kg Contains: oil collector with plug and response time line, one oil guide rod, one box of oil return connector. Function: The diesel injector stand is a tool used to hold and support diesel fuel injectors during testing Common Rail Fuel Injector Fixture Common Rail Fuel Injector Stand Common Rail Fuel Injector Bracket

ZQYM Diesel Injector Fixture Injector Stand Injector Bracket for for Common Rail injector, Unit Injector, Piezo Injector Brand: ZQYM Model No.: 200617 Weight:10kg Size: 283*488*90cm Applicable: for Common Rail injector, Unit Injector, Piezo Injector Function: The diesel injector stand is a tool used to hold and support diesel fuel injectors during testing, repair, cleaning Common Rail Fuel Injector Fixture Common Rail Fuel Injector Stand Common Rail Fuel Injector Bracket

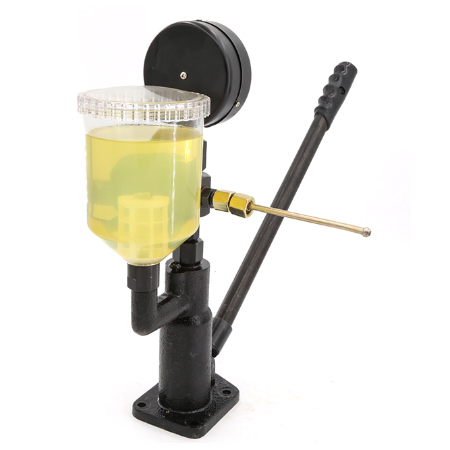

ZQYM S60H nozzle tester Fuel Injector Calibrator ZQYM No. 410023 weight: 6kg Function Adjust the injector nozzle opening pressure, nozzle seat tightness, leakage tests & spray pattern atomization Pressure range 0-600 Bar 0-8000 PSI

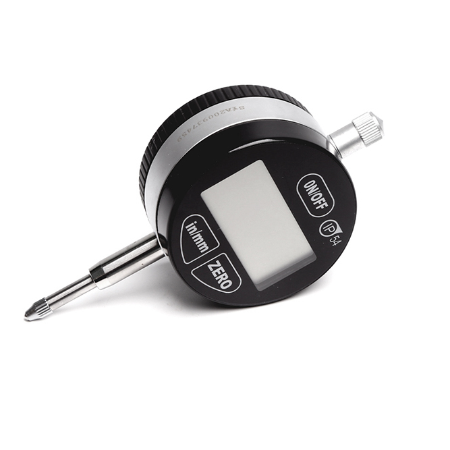

ZQYM Digital dial gauge/Digital micrometer ZQYM No. 410010 Main body material: aluminum Product process: ABS mirror cover Range: 0-12.7mm Protection level: splashproof, oilproof, dustproof Battery type: 3V CR2032 battery Dimensions: 152*92*60mm Weight: 225g

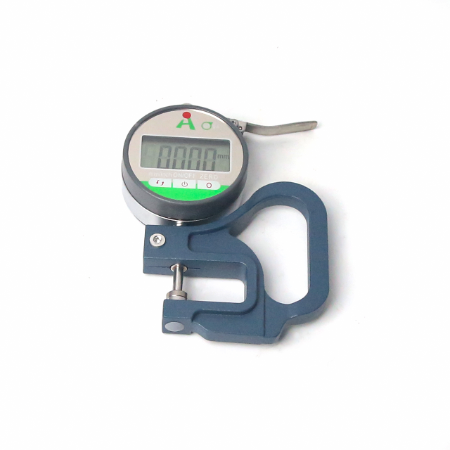

ZQYM Digital thickness gauge ZQYM No. 410051 Weight: 0.35kg 1. Accuracy: 0.001mm/0.00005＂ 2. Measuring range: 0-10mm 3. Power supply: 3.0V button battery (CR2032) 4. Working temperature: 0-40℃ 5. Storage and transportation temperature: -20-70℃ 6. Relative temperature: ≤80%

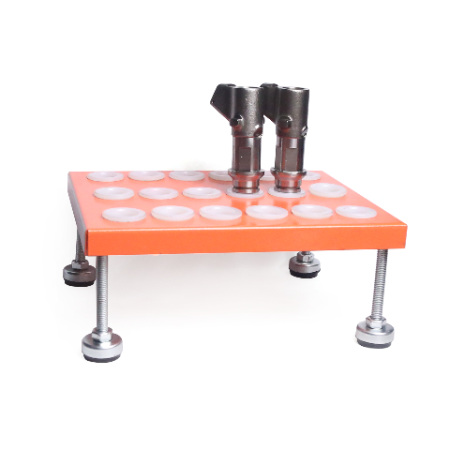

ZQYM Fuel injector rack Common Rail Injector rack Stock NO-401162 weight: 2kg

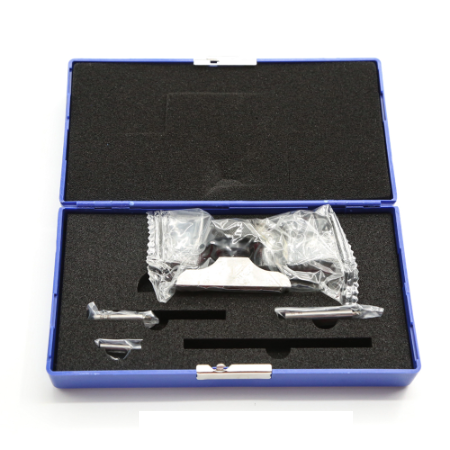

ZQYM EUP unit pump measuring tool Depth gauge Part NO-410062

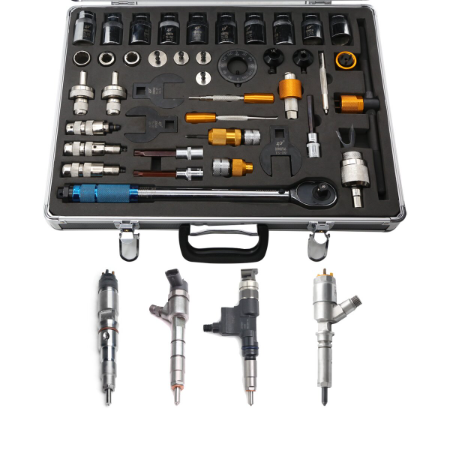

ZQYM 42 pcs common rail injector disassembly tools for Bosch Denso cat 320D common rail injectors ZQYM Product No. 20182497 Suitable for Bosch, Denso and other common rail injectors

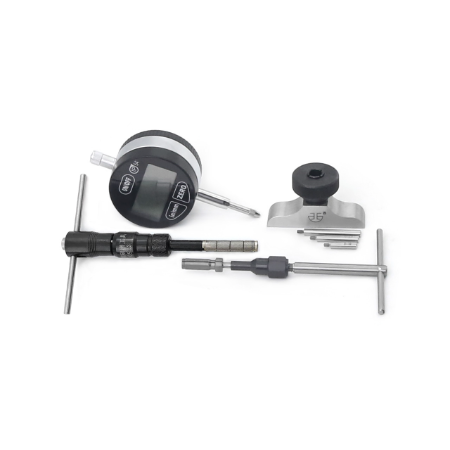

ZQYM Diesel EUI/EUP maintenance measuring tools ZQYM Proudct No：20000104 NO-200732 EUI EUP cone grinding tool NO-200923 EUI EUP center hole grinding tool NO-410010 Dial indicator NO-410062 Depth guage

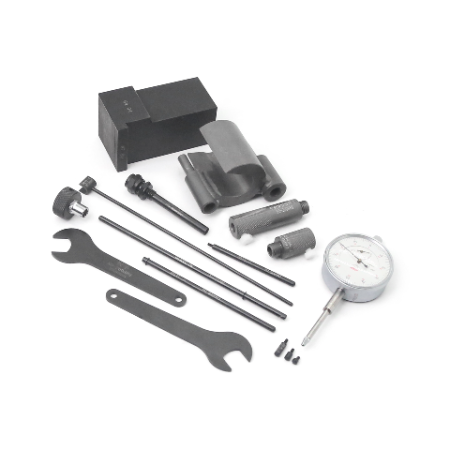

ZQYM Cat 35 Series Vehicle Adjustment Tool ZQYM No: 410017 NO-200884 Calibration block NO-200885 Timing tool body NO-200886 Dial gauge mounting body NO-200889 Wrench NO-200890 Styli NO-200894 Hexagonal block

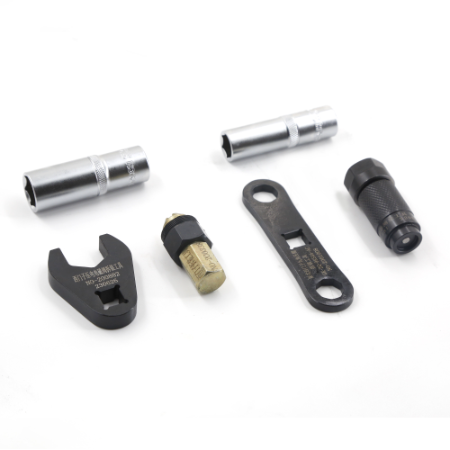

ZQYM Siemens piezo injector disassembly and measurement tools ZQYM No. 401194 No. 201046 Siemens piezoelectric solenoid valve measurement tool No. 200338 Siemens piezoelectric disassembly tool No. A200881 Siemens injector measurement tool No. 200882 Siemens piezoelectric solenoid valve disassembly and assembly tool No. 201008 Siemens nine-angle capping tool Weight: 0.65kg

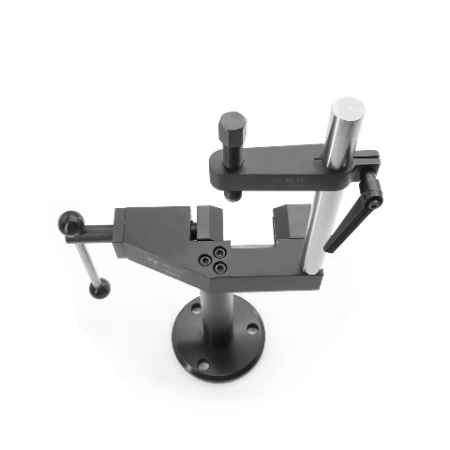

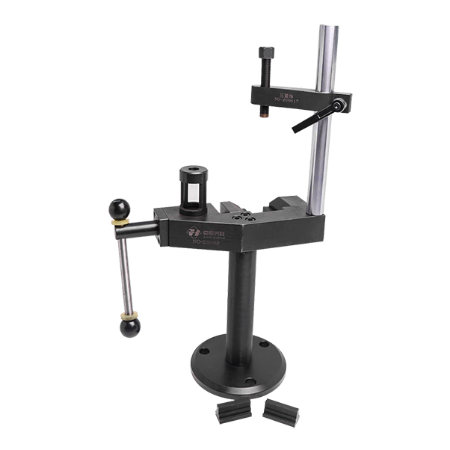

ZQYM Diesel Ｍulti-functional injector stand Applicable for CR injector, EUI injector, Piezo injector Disassembly Applicable for CR injector, EUI injector, Piezo injector Disassembly ZQYM No. 200617 Weight: 9.8kg Size: 283*488*90
